Power adapter

You are here:Home > Products > Power adapter >

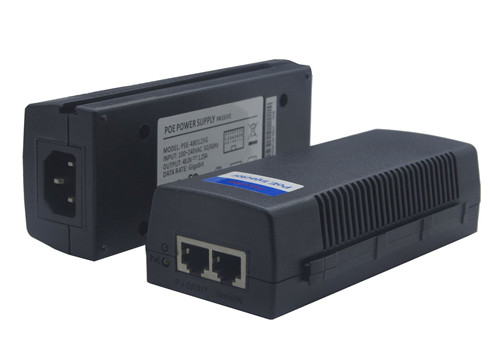

POE desktop

Time:2018-6-7 16:16:10

12V 2A/48v 0.5A/18V 1.5A/15V 1.5A/24V 1A



Eg:48V 1A



Model Number: SD-4801000SD-XXXYYYZ

"XXX"=030-480, The output voltage is DC3.0-48.0V,

"YYY"=001-450, The output current is 0.01-4.5A,

"Z" representing the input plug, 0-European plug, 1-British plug, 2-the Australian plug, 3-USA plug, 4-Japan plug, 5-China plug, 6-Korea plug.



Input specifications:



Input voltage: 100 to 240V AC, 50 to 60Hz

input current: 150mA maximum

Inrush current (240V AC): 25A, cold 25°C

No load input power (240V AC): 0.3W

Efficiency: 75% maximum



Output specifications:



DC output voltage: 48VDC 1000mA

output voltage range are: 3 to 6.5V DC

6.6 to 8.9V DC

9 to 12V DC

12 to 15V DC

15 to 24V DC

DC output current: 600mA max

Output voltage precision: 5%

Ripple/noise: 100mV

Regulation: ±1% line, ±5% load



AC/DC power adapter protection:

Over-voltage

Over-current

Short-circuit

Thermal shutdown capability



Reliability:



Burn-in: 100% full load, 40°C, 4hrs minimum

Leakage current: 0.25mA maximum at 264V AC

Withstanding voltage: 3kV 1minute 10mA max, between primary and secondary

MTBF: meet MIL-HDBK-217F over 50,000hrs, full load, 25°C



Emission and immunity:



FCC Part15 Class B

EN55022 Class B

AS/NZS3548, AS/NZS4251.1 class B

EN55024/A1:2001

IEC61000-4-2; IEC61000-4-3

IEC61000-4-4; IEC61000-4-5

IEC61000-4-6; IEC61000-4-11

GB9254-1998/GB17625.1-2003

CISPR22 Class B

CNS13438 Class B



Features:



High reliability

High efficiency: consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP

Light and convenient plug-in

With or without LED indication





Working environmental:



Operating temperature: 0 to 40°C

Operating humidity: 10 to 95% RH

Storage temperature: -20 to 65°C

Storage humidity: 10 to 95% RH







Safety approvals:



EN60950:2009; EN60065

PSE IEC60950, EN60065

AS/NZS 60950:2000, AS/NZS60065

CE(Low Voltage Directive)

UL1310, GB4943-2001





Packing details:



Individual white box

PE bag

Carton dimensions: 390 x 270 x 420mm
